Gar AM10 Discrete Opamp - 2520 Footprint

Gar AM10 Discrete Opamp - 2520 Footprint

$45.00 USD

***THESE ARE FULLY BUILT AND TESTED -- PARTS ON THE WAY. SHIPPING IN 1-2 Weeks***

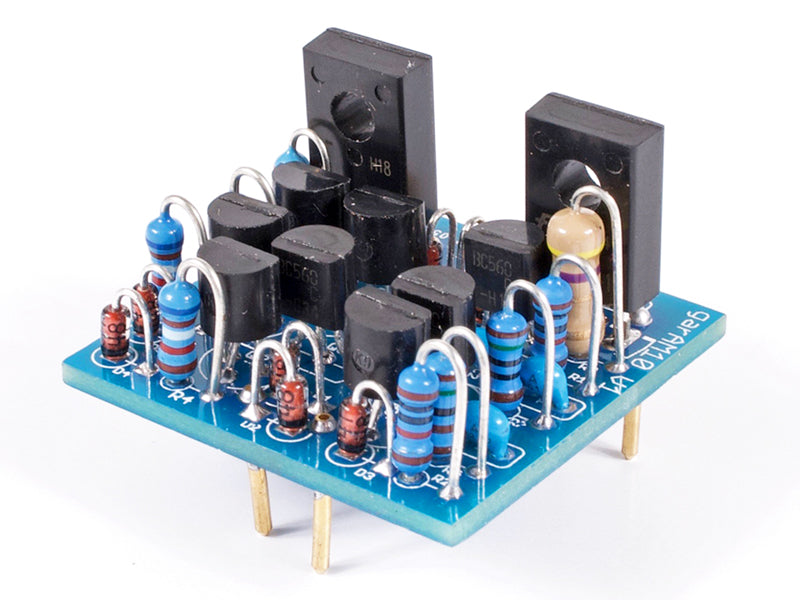

The garAM10 has been created by Gary Barnett of Barnett Industries. This DOA is a ten transistor amplifier modeled after the legendary Quad-Eight AM10. Gary has reformatted the layout to match the 2520 footprint. The original AM10 layout was a completely different proprietary footprint.

It should be noted that the garAM10 has been rigorously tested on +/-28 V rails with great success. The original AM10 was actually designed to run on +/-28 V rails. So as a bonus, the garAM10 can be used in the GDIY 51x format which utilizes +/-24 V rails.

Some of the applications the garAM10 DOA can be used for:
 Microphone Preamplifiers
 Line or Booster Amplifiers
 Lossless Combining Amplifiers
 Balanced Transformerless Amplifiers
 Equalizers and Compressors

Additional features and specs:
 Industry standard 2520 footprint for plug-in or PC mount connections
 Low noise, high power output
 Low distortion
 Minimum load impedance is 75 ohms for full output voltage
 Power supply voltage is bi-polar +/- 12 VDC to +/- 28 VDC


Qualifies for FREE shipping in the continental U.S. (min order 2 pieces)
