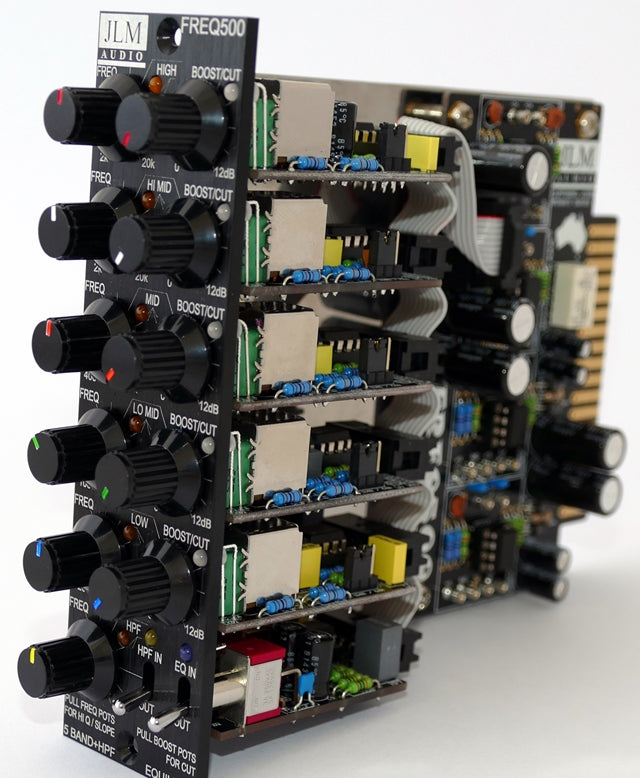

JLM FREQ500

JLM FREQ500

$499.00 USD



PARTS ON ORDER FROM JLM. CONTACT US FOR LATEST ETA

***FULLY BUILT AND TESTED WITH WARRANTY***

FREQ500 is a very powerful 500 module with fully variable 5 BAND + HPF active EQ. EQ that sounds natural.

EQ circuit is a sidechain feed forward equalizer so has extremely low noise floor even at full boost.


Features:

  • All 5 BANDS have 12dB boost and pull for 12dB cut.
  • Dual colour led with Green to show boost and red to show cut.
  • Each of the 5 bands has a internal jumper to change between 12dB or 6dB maximum boost/cut.
  • HIGH Shelf Frequency sweepable from 2k to 20k @ 6dB per octave. Pull frequency pot for 12dB per octave and orange led on.
  • HI MID Frequency sweepable from 2k to 20k @ BW of 2 octaves. Pull frequency pot for BW of 1 octave and orange led on.
  • MID Frequency sweepable from 400 to 4k @ BW of 2 octaves. Pull frequency pot for BW of 1 octave and orange led on.
  • LO Mid Frequency sweepable from 100 to 1k @ BW of 2 octaves. Pull frequency pot for BW of 1 octave and orange led on.
  • LOW Shelf Frequency sweepable from 20 to 200Hz @ 6dB per octave. Pull frequency pot for 12dB per octave and orange led on.
  • HPF Frequency sweepable from 20 to 200Hz @ 6dB per octave. Pull frequency pot for 12dB per octave and orange led on.
  • EQ in / out toggle switch with blue LED
  • HPF in / out toggle switch with yellow LED
  • Electronic Balanced input and out.
  • All pots dual 10k linear with electronic log circuit for best stereo matching.
  • All pots have DPDT pull switch built in.
  • Double sided Gold plated rear edge connector.



Specifications:

  • Frequency Response +/-0.5dB 5Hz to 70Khz, +/-3dB 2Hz to 200khz.
  • THD = 0.0015% (mostly 2nd harmonic).
  • Current draw @ +/-16v 130mA.
