JLM GEQ500

(2) Units in Stock and Ready to Ship! Additional parts on the way, and shipping in approx 2 weeks.

FULLY BUILT AND TESTED WITH WARRANTY

Note from Matt at Resistance Audio: My jaw dropped when I first learned about the GEQ500 -- Holy Moly what an incredible design! This is based on the legendary API 560 graphic EQ, but with SIX extra bands!! Not only that, it can switch between 3/6/12 db boost/cut range, making this one of the most powerful and versatile 500 series EQ's in existence.

____________________________________________________________________________________________

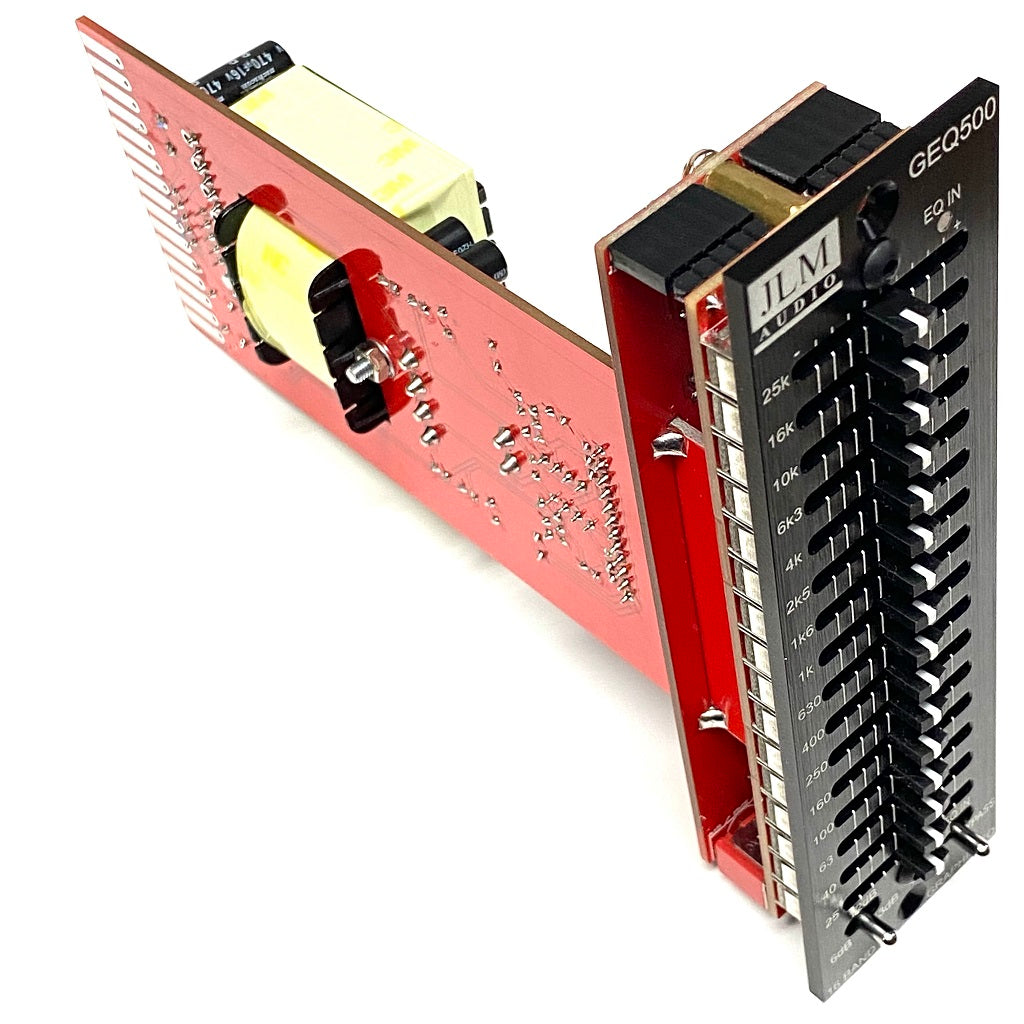

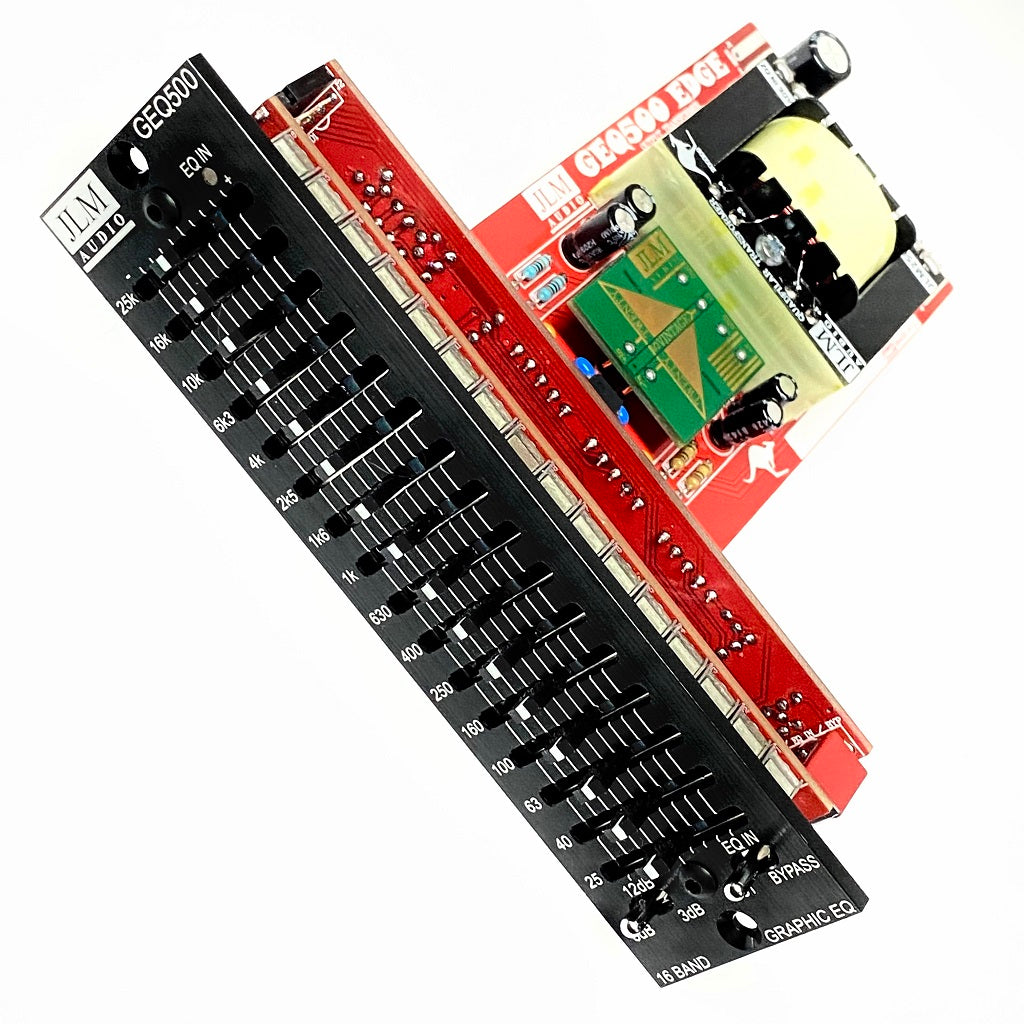

GEQ500 is a 16 Band Graphic EQ based on the 560 but with 6 extra bands and 3 switchable boost/cut ranges +/- 3dB, 6dB & 12 with RGB led to show range and EQ in. Can be switched to OUT which leaves DOA & transformer audio path inline or BYPASS which relay hard bypass the whole 500 module.

Features for each Channel

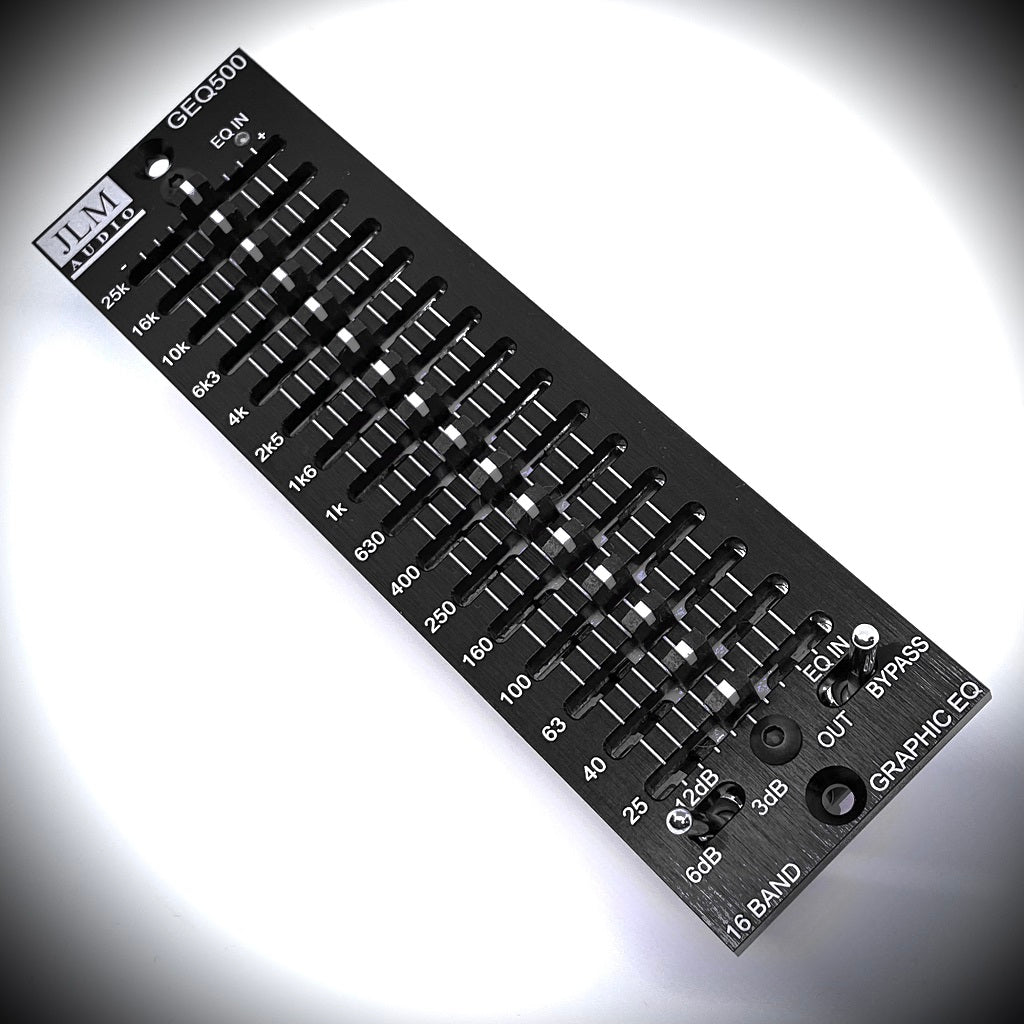

• 16 Graphic Bands with proportional Q. 25, 40, 63, 100, 160, 250, 400, 630, 1k, 1k6, 2k5, 4k, 6k3, 10k, 16k, 25k.
• EQ OUT / IN / BYPASS toggle switch. OUT leaves the audio path in the circuit with DOA and 2503 output transformer. IN enables EQ. BYPASS hard bypasses the GEQ500 completely.
• EQ RANGE toggle switch +/-3dB (GREEN) / 12dB (BLUE) / 6dB (RED) with RGB led indicator
• EQ auto Hard Bypass when 500 rack is powered off so audio still passes between in and out.
• Electronic Super Balanced opamp input to allow for large input levels and superior hum & noise rejection.
• Dual summing amps with 8 alternative bands on each for less band interaction.
• Centre detent faders with smooth feel and built-in dust covers for extra long life.
• Precision SMD filters with precision 1% super stable resistors & C0G caps for low filter distortion & noise.
• JLM Twenty 5 Twenty discrete opamp with precision-matched input and mirror transistor pairs.

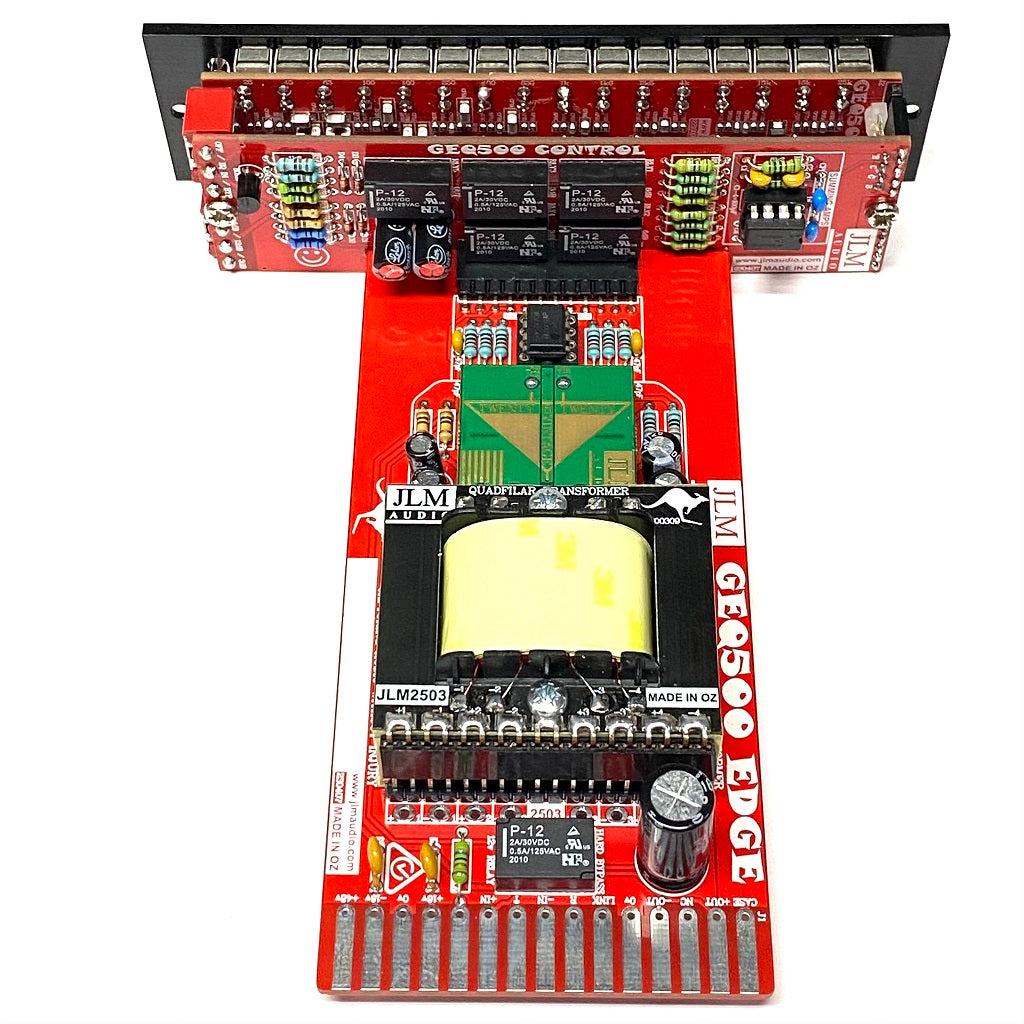

• JLM2503 output transformer.
