JLM Sidekick Rack - 8 Space 500 Series

JLM Sidekick Rack - 8 Space 500 Series

$499.00 USD

Additional Parts on Order from JLM. Ships in approx 2 weeks. Send us a mesage for latest ETA! info@resistanceaudio.com

Note from Matt at Resistance Audio: This is a super rugged and compact PSU. It's dead quiet and incredibly affordable for the quality. It's perfect for desktop use or racked with the optional rack ears. We also offer an optional lid to fully protect your gear while traveling, as well as optional rack ears for mounting in a standard 19" rack.
__________________________________________________________________

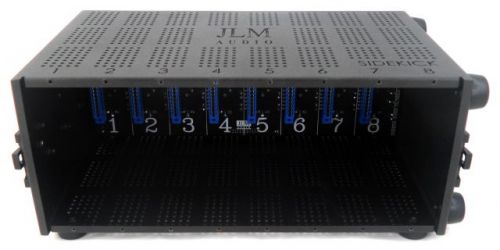

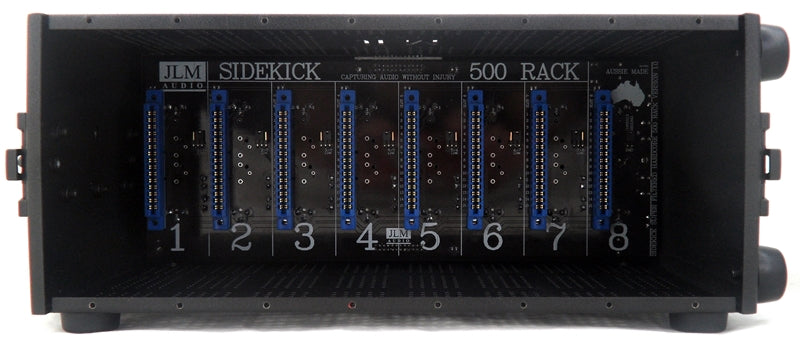

SIDEKICK 8 way 500 Series Rack with super power filter backplane PCB

and +/-16v @ 2A type and 48v @150mA VI green SMPS external power supply,

which make this rack & power supply quieter than a linear power supply.

Runs on any mains power in the world 85vac to 250vac.

Features

  • 8 Slots with +/-16v @ 2 Amps to share between the 8 slot.
  • Full compatibility with API 500 Series and VPR-approved modules

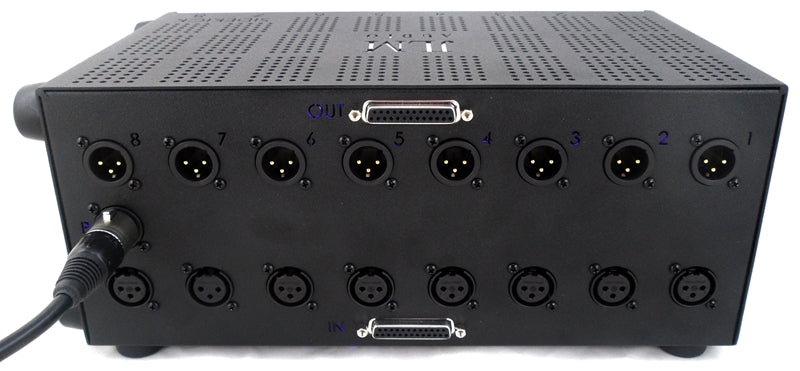

  • Neutrik Gold XLR in and outs
  • DB25 in and out on the rear panel
  • 48v Phantom Power
  • Compressor linking jumpers on rear pcb for easy setting.
  • Folding spring loaded carry handle for portability
  • Super tough and well ventilated. Weighs only 2.5kg.
  • Chassis has built in nutsert threads so all fittings can be changed without removing modules.
  • Optional GEARSAFE reverseable locking lid to protect your modules.
  • Optional rack wings available to make 3 unit high 19" rack mount.
  • Weight - Sidekick Rack = 2.5kg, Lid = 0.9kg, Rack + Lid = 3.4kg total.
  • Dimensions - Sidekick rack 320mm wide x 133mm high x 185mm deep (227mm deep with lid). Add 10mm each side and bottom for feet and handle.


Questions: info@ResistanceAudio.com

The JLM SMPS Power Supply is Included, and powers (1) 8 Space Rack with power to spare.

Fully Built and Tested with 2 Yr Warranty
